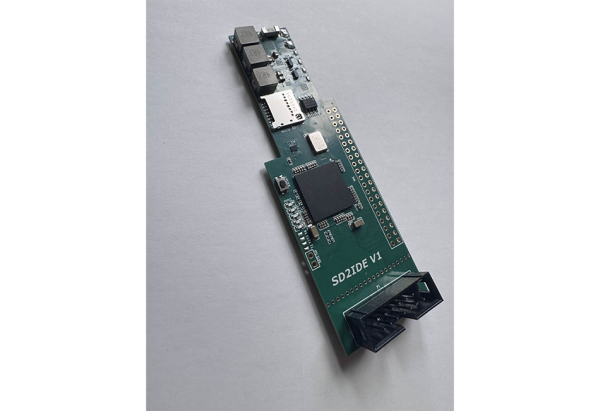

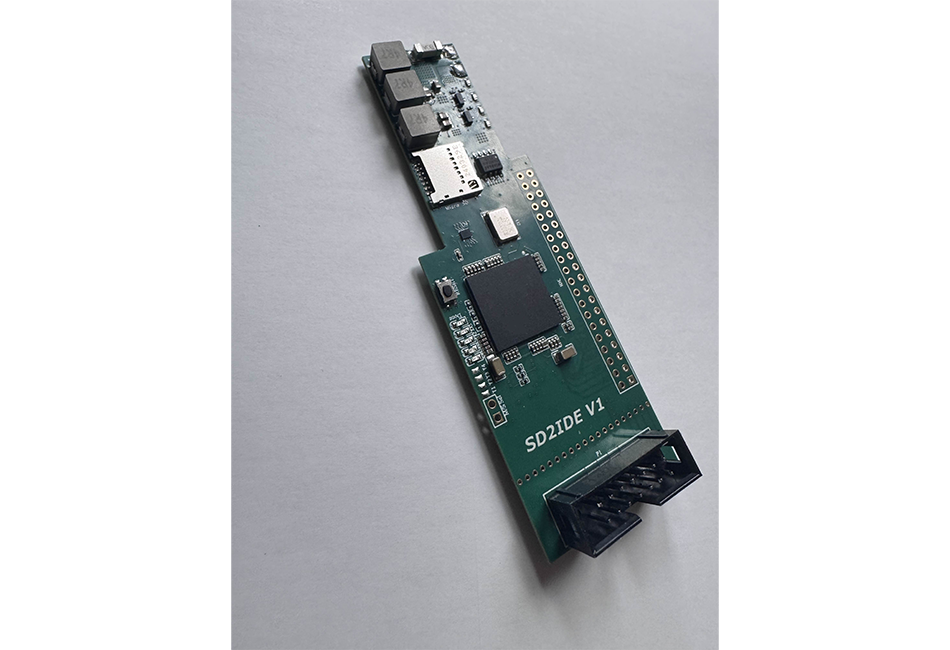

SD2IDE (PRE-ORDER)

Description

SD2IDE is an SDIO to IDE (PATA) emulator. Currently, it is STRICTLY a hard disk emulator, but it can and will be expanded to CD-ROM/DVD emulation eventually.



Features:

• Up to 2TB microSD
• LBA28 support
• LBA48 support
• CHS mode
• UDMA6 capable
• Master/Slave select for IDE interface

What’s so special about this product compared to current solutions on the market? Nearly every all SD to IDE adapters on the market use the FC1307A chipset. It comes with a buggy firmware, limited to LBA28 (128GB max) compatibility, and most importantly, this is upgradeable.

Some use cases include:

• Finally max out a PS2 70K. Most mods use the SD to IDE adapters with the 128GB limit
• Portable OG Xbox
• Retain the disc drive in Dreamcast
• Retro PC’s, with CF becoming a rare storage solution, this is another solid state option
• (comes later with update) PSX DESR HDD replacement, restore the bricks caused by failed hard drives

This is for batch 1 of production. 500 will be made.

This will be placed for order on PCBWay June 1st

The PCBs take 7-8 days to produce.

Assembly is another 21 days.

Shipping is 1-2 weeks

Shipping from PCBWay to me should happen around June 28-30th.

Shipping from me to customer should be another week to program all boards.

Any delays will be reflected on this listing and discussed in the #sd2ide channel of the discord linked below.

For more information please join the discord. The channel for development is active
